Jazz videos and Users’ Guide tutorials use various files to demonstrate Jazz features.  It is recommended that new users use this section as initial training, working through creating and printing at least some of the files, in order to develop initial familiarity with MANASYS Jazz before exploring more sophisticated programming than basic file reporting.

Training objects, shipped with Jazz and downloaded when you click [Add Training] from the Configuration form, create these files. This Users’ Guide section tells you how to use these objects to create the files.   You can download these items selectively as you need them, or simply select and download them all.

The files are very small, only 300 Customers, 10 Regions, only a few Parts and Orders.  This is enough to demonstrate a variety of situations like look up a record, look up a record that isn’t there, handle page overflow etc, but not enough to demonstrate large-scale processing or do stress testing.  They are designed to help you with Jazz training, where small (and quick) tests are better than processing production-scale data sets that typically just repeat the same demonstration thousands of times.

To download the training objects,

1.    Open the Jazz Workbench and click [Configure]

2.    Click [Add Training].  This opens a Windows Explorer showing the objects available for download

3.    Select the items you want to download.  To select all, select the first, and then with Shift pressed select the last.

4.    Click [Open].  In this context this means “Select” and the selected objects are downloaded into the appropriate Jazz folders.

You don’t need to do every step of this topic in order: for example, if you don’t want file FR you can skip that section.  However, to create file CUSTF you must have created file IN1.  Such dependencies are noted.   Material specific to Micro Focus will be in Appendix 1: Micro Focus, and material specific to z/OS will be in Appendix 2: Z/OS so that irrelevant material does not get in your way.

Start with the next section, Create Sequential File IN1, as this illustrates creating files with both zOS and Micro Focus.  Later this chapter mostly uses Micro Focus projects called CWSProject, ACCT, or TstSQL.  Wherever this chapter refers to (for example) “The ACCT button” or “The ACCT project”, then substitute the name of your own MF Project. In the graphic directly below this is the button [CWSProject].  If you’re using zOS the button will be [Job Results].

Create Sequential File IN1

File IN1 is used in some examples: it is a basic sequential file containing 300 records.   Program IN1W.jzz, one of the objects available within the folder of Training Objects, will create this file for you.  Open program IN1W, click [Check]:-

Message #378 warns us that we may have to change the JCL.  With Micro Focus Enterprise Developer(MFED) we change the JCL within the Micro Focus COBOL project. If z/OS is our test system, then this is done before the job is fully processed.  Refer to
            Generating the file – MFED
or         Generating the file – z/OS

Print file IN1 (Optional)

If you want to independently print the file you’ve just created, there is a program IN1R.jzz downloaded with the training objects.  If you want to do this, open Jazz program IN1R and [Process] it.

With z/OS, when the [Job Results] button turns green click it to see the job output.  With MFED this button will have a project name ([MFJazz1] in the example above).  Click this to open the MF Cobol Project, add IN1R.CBL and IN1R.JCL to it, build the solution, then submit the JCL.  Results will look something like this: -

Training Exercises

Play around with the program, for example, try changing the record order.  Change the list of fields printed.   Make a mistake, and see what happens, then correct the mistake (you may have already done this by now 😊)

Create VSAM File FR

This is similar, using programs FRW to write the file and FRR to read it, but a difference is that FR is a VSAM file so a VSAM cluster is needed.

Create VSAM Cluster

The record FR has already been defined to Jazz (FR.jzc is one of the items downloaded when you clicked [Add Training]): -


    Region PIC '999' KEY RANGE (1:20),

    Name CHAR(30) VALUE('No Record found') HEADING 'Region Name',

    Fill CHAR(47))


Creating a VSAM cluster from a Jazz definition is easy.  From the Jazz Workbench, click [New] and Select /Data/VSAM to open the VSAM form: -

Click [Browse] and browse to the definition fr.jzc.  It’s in the \Jazz_CopyDefs subfolder of your project folder

Check [  ] Cluster

Set the number of 1ry records you expect to have in the file.  FR is very small, 10 will do.

Click [JCL].  The button changes to [Review], allowing you to see and edit the JCL, and the middle button becomes active.  Click it to create the cluster: -
            Micro Focus

Create Test Data for FR

Open program FRW.  Click Process]: -

With z/OS, when the [Job Results] button turns green click it to see the job output.  With MFED this button will have a project name ([TstSQL] in this example).  Click this to open the MF Cobol Project, add FRW.CBL and FRW.JCL to it, build the solution, then submit the JCL and examine the job output.

Print FR (Optional)

Repeat this process with program FRR to print the file: -

As above, with z/OS, when the [Job Results] button turns green click it to see the job output.  With MFED this button will have a project name ([TstSQL]).  Click this to open the MF Cobol Project, add FRW.CBL and FRW.JCL to it, build the solution, then submit the JCL.

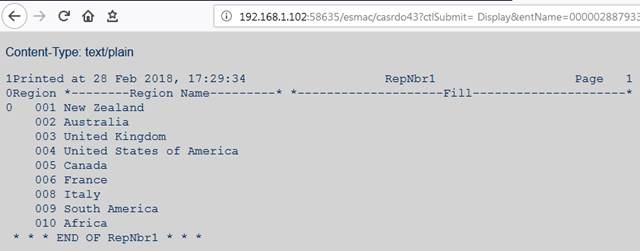

Here is the report printed in the job output, showing that we’ve created the test data as expected: -

Training Exercises

Now the file FR exists it can be used in batch programs.  Go back to program IN1R, and add statements to print the region name as well as fields from IN1.  You’ll write GET FR … somewhere in your program: use Help to figure out what you actually need to write.  What happens with a Region value of 7?

Create CustF

In the Classical CICS and Web Services tutorials, the earlier example programs require a VSAM file Custf, while the later programs also require a related file called ORDERS.  Both are VSAM files, but unlike FR they both have alternate indexes.  This makes the VSAM definition a three step process.

1.    We use New/Data/VSAM to define the cluster.

2.    A program (CustFW, OrdersW) is run to load data into them.

3.    After they have been loaded a second VSAM function is used to create the alternate indexes.

Before CustF can be loaded we must have created sequential file IN1.  Although this is not used in the CICS programs, the program Custfw.jzz that writes data into Custf is based on logic to copy IN1 to Custf, so it is needed in step Load Custf.

Create CustF Cluster

Here is the definition of CustF (from the Jazz Copy Books folder, included from Jazz with training objects).  Note that as well as the primary key Account there is a duplicate key on Name.  This will require an alternate index to be created.  However VSAM doesn’t allow us to create an alternate index until we’ve initialised the cluster by writing some data into it.

First, we define a VSAM cluster as we did for FR.

·         From the Jazz Workbench select Data/VSAM.

·         Browse to the \Jazz_CopyDefs\Custf.jzc, and check Cluster.

·         Set 1ry to 300, and click [JCL].

Jazz will have created this JCL to create the VSAM cluster: -




//SYSIN    DD *


     RECORDS(300 30) -



This JCL is processed exactly as described for FR, and from the job output we check that the cluster was created as expected.

Load CustF

Program CustFW, which is included in the Training objects, will create an initial 300 records.

Open program CustFW: -

Like FRW we can compile and run this program to load initial data into the cluster, but unlike FRW we must first edit the JCL.  The JCL has been generated including a DD for the alternate index, but the alternate index doesn’t exist yet.

//*** Run BATCH PROGRAM in IDE with Micro Focus Enterprise Developer






//* Inserted DD statements based on program






Remove the line //CUSTF1 DD …

and save CusftW.JCL.

With this change made, compile program CustfW and submit CustfW.JCL.  The output shows the 300 created records.

Create the AIX and Path

Now return to Jazz, invoke Data/VSAM, this time checking the AIX checkbox.

If the bottom-left button has caption [Review], not [JCL], click [Review] to change it back to [JCL], then continue …

Click [JCL] to create it.  If you review it, you’ll see that CUSTF.JCL will now create the alternate index and path: -




//SYSIN    DD *




     RECORDS(300 30) -







With Micro Focus you don’t need the BLDINDEX command so you can remove it if you like.  However it will be ignored with a harmless message if you don’t.  Submit this JCL

Now that the alternate index is created, you can use CustF like FR in batch programs, both for sequential processing (PROCESS), and direct lookup (GET) using either Account or Name as key field.

Creating Parts and Orders

Program CICS3 and some of the later Web Service objects use a simplified Customers – Orders – Parts data model, like this.   We have already created the customer file, CustF, but we need to create the Parts and Orders files: -

The notes below are illustrated using Micro Focus project TstSQL, which was used for Web Service and DB2 testing.  Explanations can be relatively brief, as you can refer back to CustF to see screen snaps.


Parts.jzc looks like this: -


    Partnbr INTEGER KEY,

    PartName CHAR(30) DKEY 'ibmuser.vsam.parts1',

#647 W CAPS/LOWER option recommended

    StandardPrice DECIMAL(7,2))

    DSNAME 'ibmuser.vsam.Parts';

You may ignore message #647, as it is not likely to cause problems for our use of Parts in Jazz training.  Message #647 is produced when CHAR keys are used in a key (KEY, DKEY, or UKEY) as mixed-case keys are difficult to use, for example you’ll find the first record with “8M Tape Measure”, but not with “8m tape measure”.

1.    Create a Cluster

2.    Start dialog Data/VSAM

3.    Browse to Parts in the Jazz Copybooks folder, and ignore messages about Jazz Messages Present.

4.    Click Cluster, and allow for 15 records.

5.    Click [JCL].   Process the JCL with MFED or z/OS to create the cluster

2.  Load Initial Data

Now that the cluster exists, we use program PartsW to load it.   As with CustFW that loaded CustF, MANASYS will generate JCL assuming the alternate index exists so we need to edit the JCL before it is run.

1.    Open PartsW.jzz with MANASYS, and Process it to produce COBOL and JCL

2.    Edit Partsw.jcl to remove the unwanted //Parts1 DD …

3.    Process the COBOL and JCL with your test system (MFED or z/OS), running program PartsW with the modified JCL

4.    Results will look like something like this: -

3.  Create Alternate Index

1.    As we did with CustF, we create the alternate index on PartName using Data/VSAM again, this time checking the AIX checkbox.

2.    Click [JCL], and submit it to the test system (MFED or z/OS)

Check that the job ran correctly, with Condition Code 0000
We have now created a small parts file, with parts numbered 1 to 10, and an alternate index on PartName.  Of course a real parts file would have many more records, and many more fields in each record, but this test data is sufficient for a demonstration.


Orders.jzc looks like this.

COPY Custf;

COPY Parts ;


    OrdNbr DECIMAL(5) DPIC '99999' KEY HEADING 'Order Number',

    OrdCustId LIKE CustF.Account DKEY 'jazzuser.vsam.Orders1' EXISTS CustF.Account ,

    ordDate DATE,

    OrdPart LIKE Parts.Partnbr DKEY 'jazzuser.vsam.Orders2' EXISTS Parts.Partnbr,

    OrdQty SMALLINT,

    OrdDiscount DECIMAL (3,1) HEADING 'Order Discount',

    OrdStatus CHAR(1) CODES(I:Initial, C:Confirmed,Q:'Part Shipped', S:Shipped, B:Billed, P:Paid))

    DSNAME 'jazzuser.vsam.Orders';


Note that it has TWO alternate indexes, one on OrdCustID so that we can look up orders by customer, and one on OrdPart so that we can look up orders by Part Nbr. Both of these are defined LIKE xxx EXISTS xxx, making it easy for us when writing the definition as it ensures that the corresponding fields in both files have the same format, and ensuring that values in Orders must be primary key values in the respective files.   With SQL organization this relationship would be checked when we write an Orders record, but with VSAM it is not checked unless we use an ACCEPT statement.

Because of these relationships, we’ve left Orders to last, as we cannot create the Orders cluster and indexes until we have created both CustF and Parts.

Create VSAM file Orders following the same steps as for Parts, with the minor difference that there are two alternate indexes: -

1.    First create a cluster, using Data/VSAM to create appropriate JCL.  Allow for 300 records

2.    Open program OrdersW.jzz in MANASYS, and process it to produce COBOL and JCL

3.    Edit OrdersW.jcl to remove the unwanted // Orders1 DD … and // Orders2 DD …

4.    Compile the COBOL, and submit OrdersW.jcl to run it

5.    Use Data/VSAM again to create JCL, this time clicking the AIX checkbox.

6.    Submit this JCL to run it

We have now done enough to use CustF, Parts, and Orders in batch programs.  For Classical CICS and CICS Web services we need to create appropriate table entries: FCT to identify files, PCT for transaction codes, and so on, and to understand the logic of these programs and how to write them.  To learn how to do this, have a look at the relevant Users’ Guide pages (

Start with Jazz On Line Programming - Introduction

For Classical CICS (3270), users should continue with

            Part 2: Updating Records

            Part 3: Record Collections

Or        Jazz Classical CICS Progamming with Micro Focus

For web services, start with Service Oriented Architectures and Web Services: Introduction

Then continue with

            Providing Web Services

            Providing Useful Web Services

Or        Web Services with MANASYS Jazz and Micro Focus

SQL Test Data

There was no need to provide any test data for DB2, because IBM supply a sample database as a downloadable option with DB2 LUW (Linux, Unix, and Windows), and presumably with DB2 ZOS, and this was used for our examples and testing.  See Working with SQL (DB2 and other relational databases) for more information. I added a couple of fields to the Employee table for my own testing, these are not present in the original Sample database and you won’t need them.


    CURRENCY CHAR(3),  [Test COBOL reserved word in SQL Table

    DEPTMGR BOOLEAN);  [Test handling of CHAR(1) as BOOLEAN

Appendix 1: Micro Focus

This appendix contains material that is relevant when MANASYS Jazz is configured to work with Micro Focus Enterprise Developer (MFED).  Links in the main text will bring you to the relevant section, at the end of each section “Return to main text” will take you the next topic in the main text.

Generating IN1 – MFED

Click [Process].  Jazz generates COBOL and JCL, and the project button ([CWSProject] in this example) turns green.  Click this to open the MFED COBOL project in Visual Studio.  Look at the Solution Explorer window.  Although we have just generated COBOL into the \cbl folder, there’s no sign of it, nor of the JCL.

They need to be added to the project.  Right-click the project, and choose Add/Existing item. A FileOpen dialog appears.  Open the .cbl subfolder.  You will see a number of .cbl files that are not in the project: -

Select IN1W and all the JZxxxx routines.  JZxxxx routines are general-use routines: for example, JZDT01 formats a date on a printed report, JZDTAR is used if your program contains DATE arithmetic.  It can be difficult for you to know when they are used, it’s easiest to just include them all in your project.

To add the JCL, again right-click the project and choose Add/Existing item.  This time navigate to the Jazz_LocalJCL folder, and select IN1W.JCL.

In Visual Studio/Solution explorer, our project now looks like this when we expand cbl and Jazz_LocalJCL: -

Double-click IN1W.JCL to open it, and edit it as described above for z/OS: -

Change the //IN1   DD   statement from




//            SPACE=(TRK,(1,1))

Save this.

Right-click the project and click Build.

If your project has been defined like TSTSQL with SQL enabled you may get error messages like this: -

for program IN1 and the JZ modules.  This is because we haven’t yet completed SQL setup, and the SQL switch routines aren’t yet available.  None of these modules require SQL, so you can get rid of these messages by setting the properties of the individual COBOL programs: -

·         Right-click the object, say IN1W.CBL, click Properties

·         Click the SQL tab.  Check [P] Set explicitly no SQL.

You may get errors because the project contains objects have been created with COBOL dialect Micro Focus, but the Jazz objects expect COBOL dialect IBM Enterprise COBOL.  The supplied training programs include code like this which is invalid with other COBOL dialects.

000350 FILE-CONTROL.                                                    IN1W

000360     SELECT IN1  ASSIGN TO IN1                                    IN1W

000370                 FILE STATUS IS IN1-STATUS.                       IN1W

000380     SELECT RepNbr1  ASSIGN TO RepNbr1                            IN1W

000390                     FILE STATUS IS RepNbr1-STATUS.               IN1W

Change the project’s COBOL dialect to IBM Enterprise COBOL and rebuild.  Now the errors disappear from IN1W.cbl, but there may now be errors with previous programs.  For example, in project LoanDemo there were errors with book.cbl.

Right-click book1.cbl, click Properties.  Set the COBOL dialect for this to Micro Focus.   Rebuild.  Now the project builds cleanly.

We could have done this the other way around, leaving the project’s COBOL dialect as Micro Focus and changing IN1W to use IBM Enterprise COBOL.  I have chosen to change the project default because there will be more Jazz programs added to it.

If you have previously run batch programs from this project then you can now run program IN1W.  If this is the first time you’ve run a batch job in this Micro Focus project, you may need to enable JES.

Enable JES

If this is the first time that you have attempted to run batch programs the output will show messages like this: -

Submit JCL file starts ...

Submit JCL file to TSTSQL completed

CASBJ0050E JES support not enabled; Job rejected 10:08:07

Processed "C:\tutorials\TstSQL\Jazz_LocalJCL\IN1W.JCL"

To enable JES: -

·         Open ESMAC (right-click Micro Focus Servers in Visual Studio/Server Explorer, click Administration)

·         Click [Edit] corresponding to the server

·         Navigate to Server/Properties/MSS/JES, and check Job Entry Subsystem enabled: -


·         Click [Apply].   Close ESMAC, return to Visual Studio

·         Server Explorer: restart server LoanDemo

Running your job, and viewing the output

Run your job from the MF Project by: -

·         Solution Explorer, right-click IN1W.JCL.  The Job is submitted and run, and the Output window shows

·         Clicking the link shows the job output

·         Program IN1W writes a report to file REPNBR1.  Click this link to see the 300 records written to the file

Return to main text – Print file IN1 (Optional)

Create FR Cluster – MFED

On clicking [JCL] the VSAM form closes and you’re returned to the Jazz workbench, with a dummy program JZVSAM. The [TstSQL] button will be highlighted.

·         Click this to open your COBOL project.  The newly-created object, FR.jcl, is in not in the project unless you’re doing this again, so right-click the project in Solution Explorer, and click Add/Existing item. Browse to FR.JCL, and click [Add].

·         Solution Explorer: Right-click FR.JCL, click Submit JCL

·         Click the link from the output page to review the job output.

·         Click SYSPRINT to confirm that the cluster has been defined

Return to main text – Create Test Data for FR

Appendix 2: Z/OS

This appendix contains material that is relevant when MANASYS Jazz is configured to work z/OS directly.  Links in the main text will bring you to the relevant section, at the end of each section a link “Return to main text” will take you the next topic in the main text.

Generating IN1 – z/OS

Right-click [Process] and then click [JCL].  Jazz runs the first three steps: [Check], [COBOL], and [JCL], but then stops with the Process form displayed and the button [Find JCL] changed to [Review JCL].


Click [Review JCL] and change the //IN1   DD   statement from




//            SPACE=(TRK,(1,1))

Save the edited IN1W.JCL, then click [Submit] to submit the compile and go job.  You are returned to the Jazz Workbench. When the job has run [Job Results] turns green.  Click this to see the job output.

Return to main text – Print file IN1 (Optional)

Create FR Cluster – z/OS

The [JCL] button changes to [Review], and the [Submit] button will be activated.  You can review the job and edit it if you wish.

Click [Submit] to submit the job to z/OS.  The VSAM form closes and you’re returned to the Jazz Workbench.  When the [Results] button turns green you can view the job output.

Return to main text – Create Test Data for FR
